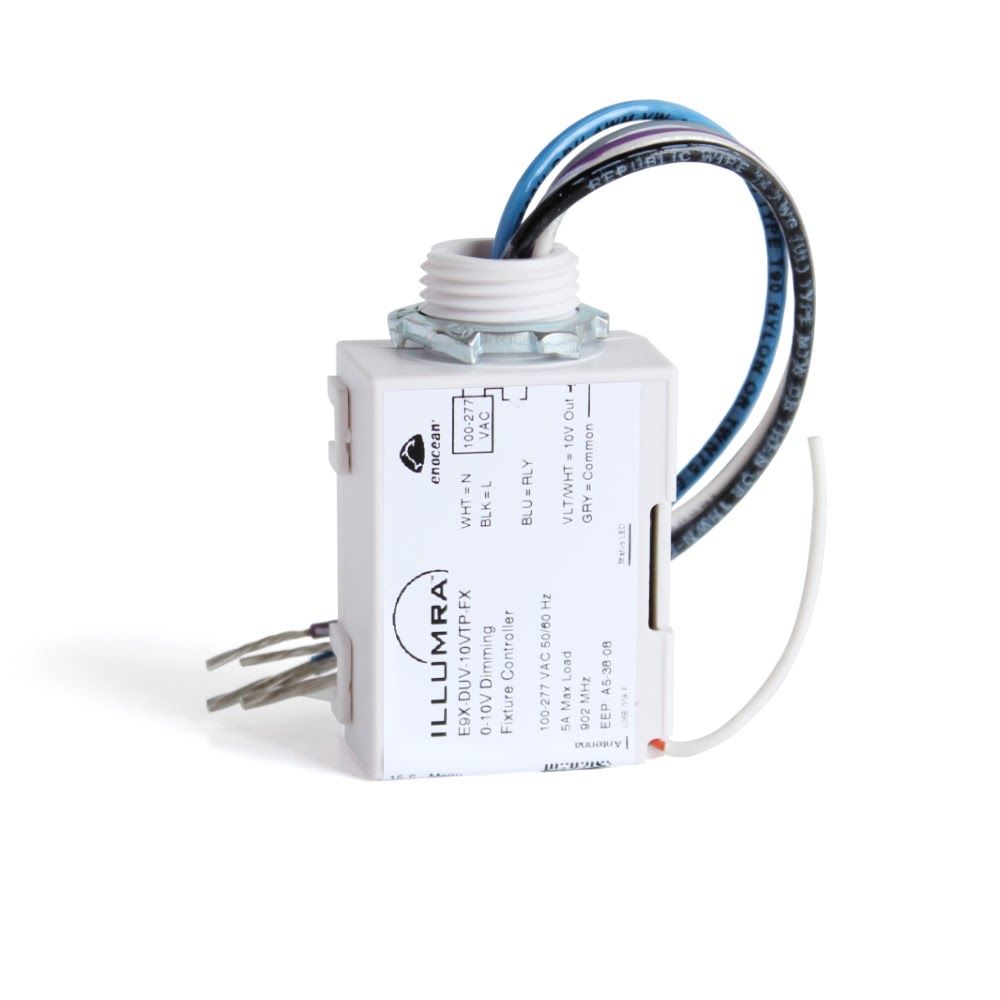

5A 0-10V Dimming Fixture Controller
SKU: E9X-DUV-10VTP-FX
ILLUMRA 5A 0-10V Dimming Fixture Controller Wireless LED & Fluorescent Dimming Control
Compact 5-amp 0-10V dimming controller for individual fixture control — no inter-fixture wiring required. Connects wirelessly to ILLUMRA switches, occupancy sensors, and light sensors for automated dimming, daylight harvesting, and occupancy-based control.
Features:
- 5-amp capacity with 0-10V dimming output
- One controller per fixture — no daisy-chaining
- Wireless control via 902 MHz (EnOcean)
- 100-277 VAC universal voltage
- 50-150 ft wireless range
- Title 24 & ASHRAE 90.1 compliant
Ideal For: Retrofit projects, classrooms, offices, conference rooms, retail spaces
Fixture Controller vs. Area Controller: Use this for individual fixture control without inter-fixture wiring. For daisy-chained zones with centralized control, see the 20A 0-10V Dimming Area Controller.
Key Features
Categories:Controllers
Voltage:120V
Frequency:902 MHz
Protocols:902 MHz Protocol
Specifications
| Frequency | 902 MHz |
| Transmission Range | 50-150 feet (typical) |
| Power Supply | 100-277 VAC 50 – 60Hz |
| Max Load | 5 AMPs all loads; 0-10V sink 100mA; 0-10V source 1mA 70A Max Inrush Current |
| Compatible Loads | Metal Halide; Sodium Vapor; Induction; Fluorescent; LED; Other |
| Dimensions | 2.11 x 1.73 x 1.09 inches (54 x 44 x 28 mm) |
| Operating Temperature | +32° to +122°F (0° to +50°C) |
| Storage Temperature | -4° to +176°F (-20° to +80°C) |
| Agency Compliance | UL 60730 (safety) UL 2043 (plenum) CSAc22.2#14-05 (safety) CE – IEC 60730 FCC: SZV-STM300U IC: 5713A-STM300U |
